Getting Started

To get started with the RCCS, select a chart from Delphi's Tool Palette.  By default, the charts are located on a "RS Charts" tab.

Charts in Delphi's Tool Palette

RCCS Charts are full controls.  Charts are TGraphicControl descendants for VCL and TControl descendants for FMX. Display charts on a chart panel (with integrated axes, legend, header, footers, etc) or stand-alone (allowing use of FMX effects, drag and drop, mouse events, embedding with other controls, etc). As a stand-alone control, you drag and drop the chart control to anywhere on the form you would like it.  You can select a chart visually on the form and resize it too.

Chart On Form

To edit a chart, select it in the form designer.  The properties for the chart appear in the Object Inspector.  The Object Inspector allows you to set properties of the chart and immediately see the changes to your chart.

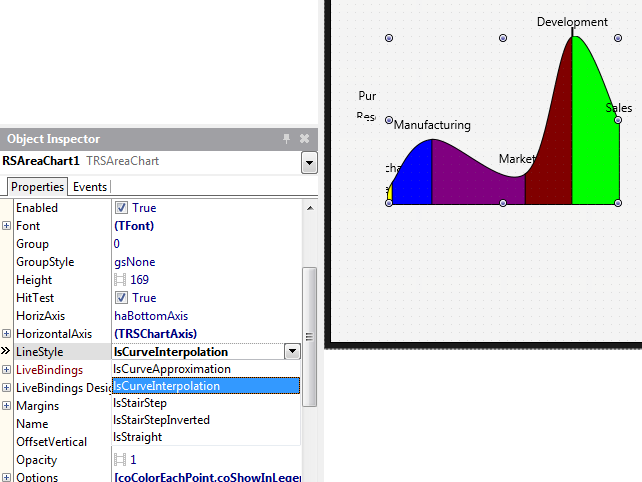

Area Chart and Object Inspector

The Values property is the most important property of a chart type and allows you to define the chart values at design-time or run-time. Click the ellipsis button (...) for the Values property of the chart (or select the Values property in the Structure pane).

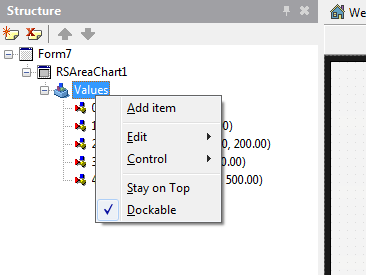

Add Chart Values at Design Time using Delphi's built-in Collection Editor

This action displays Delphi's Collection Editor for the TRSChartValues collection. Use the collection editor to add, delete, or select chart values (TRSChartValue).  When a chart value is selected, you can edit its properties such as Caption, Value, and Color.

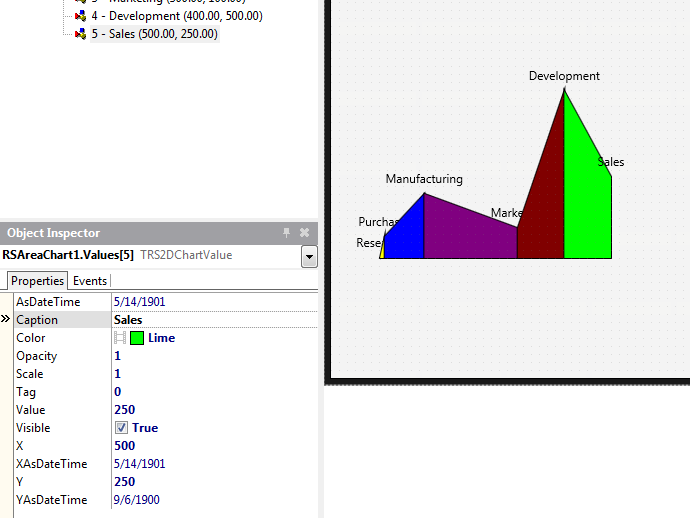

Edit Chart Values properties at Design-Time, including Caption, Color, and Values

Optionally, you can attach a chart to a chart panel (TRSChartPanel).

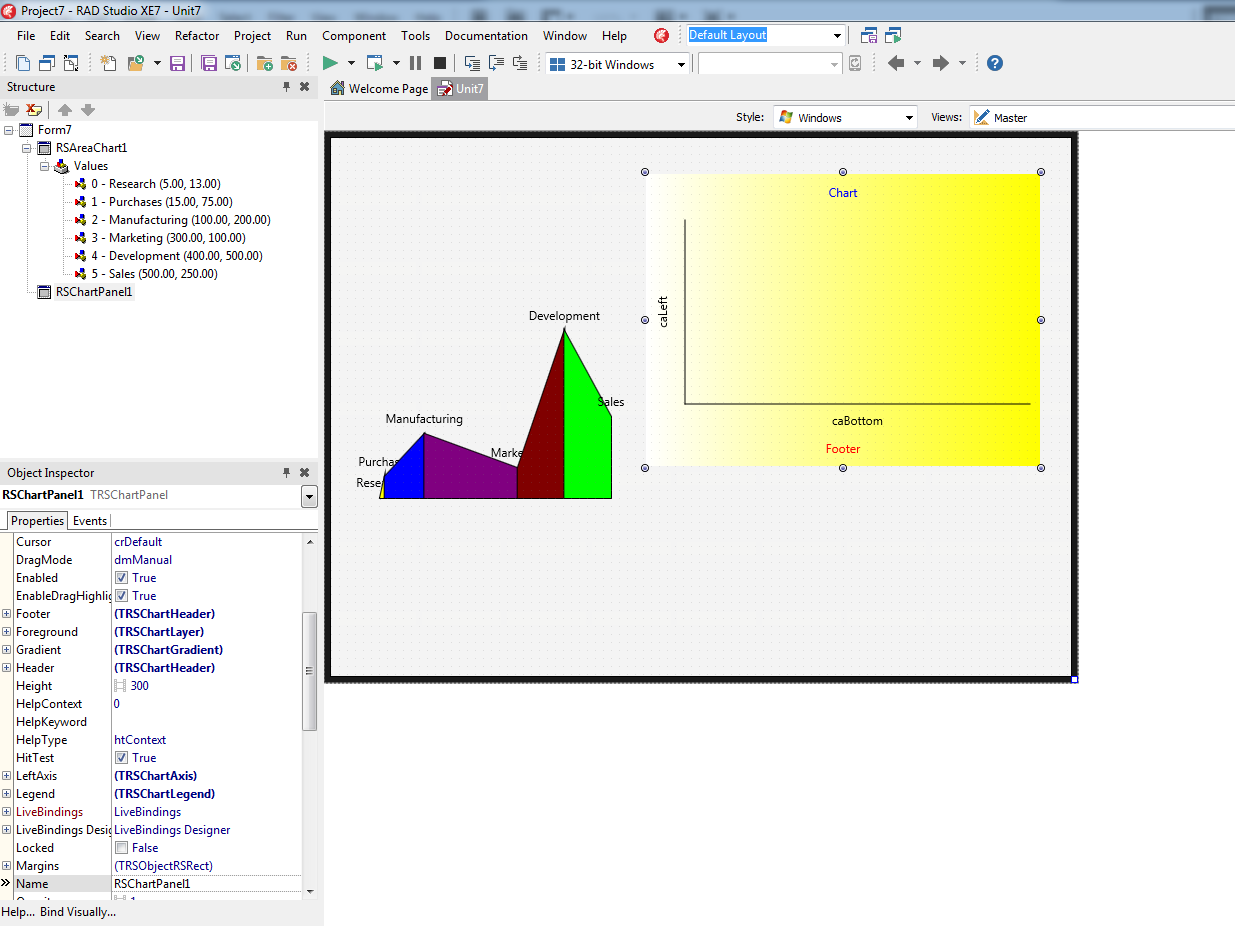

Chart Panel (TRSChartPanel) on a form.  It provides the panel or the canvas which is the visual parent of the charts (and where they are drawn) and where the user interacts with the charts (zooming, panning, selecting).  The TRSChartPanel component provides the ability to significantly customize the look and feel of objects that are drawn with a chart: axes, legend, shadow, gradients, foreground and background, etc.

A TRSChartPanel allows you to group charts; edit axes, header, footer, the built-in legend, and layers; and allows the user to zoom, pan, and select charts.  Drag and drop a TRSChartPanel control onto the form.

Set the Panel property of the chart to the TRSChartPanel you want the chart displayed inside or nil for stand-alone use.  When you set the Panel property of a chart, it also changes the Parent of the Chart to the TRSChartPanel, which will move the chart inside the chart panel.  At design-time, you will see two displays of the chart: as a control and inside the chart panel.  Note that more than one chart can share the same chart panel.

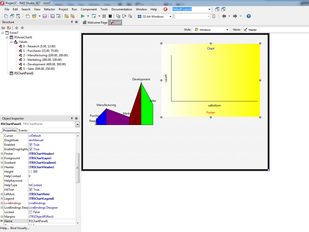

Displaying Chart in the Chart Panel (TRSChartPanel)
